Containerized-type H2 Generator
Features

Containerized-type H2 generator

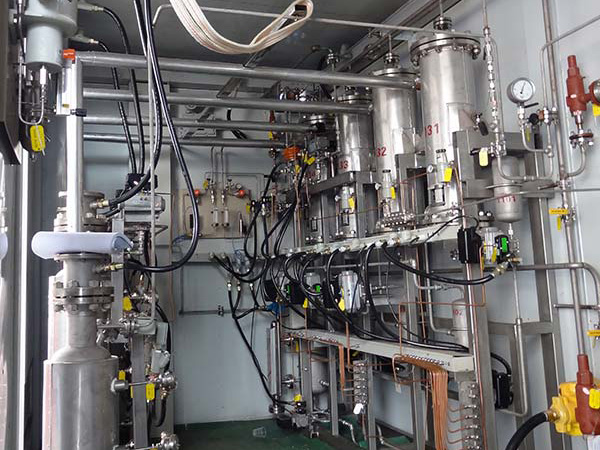

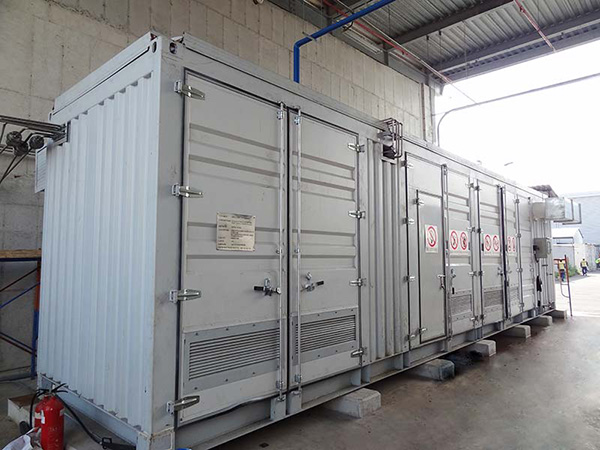

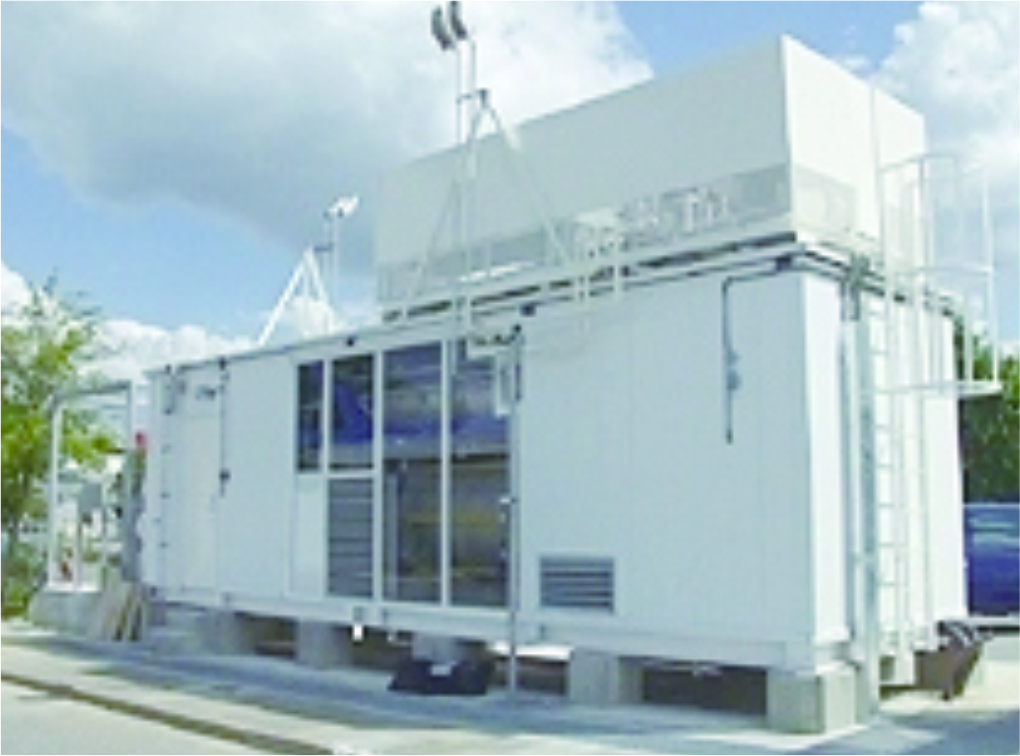

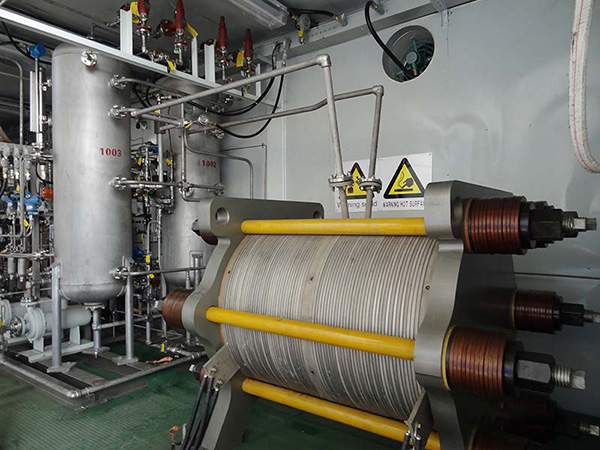

Containerized-type H2 generator is completely developed and designed by PERIC, called as model KZDQ series. All the main elements of these model series have been integrated within 40-feet container, such as electrolyzer, gas-lye treater, hydrogen purification unit, water tank, power rectification unit, PLC control system and PDB/MCC, etc. H2 flow of such H2 generator ranges from 5Nm³/h to 100Nm³/h, and all interconnection within the container has been completed before shipment. Customers can just plug the utilities to their plant and then start it. It extremely saves the capital cost of customer to set up. H2 purity could be better than 99.999% and dew point better than -70 Deg.C.

Technical Parameters
Model H2 Output (m3/h) O2 Output (m3/h) Hydrogen purity (V/V) Oxygen purity (V/V) Working Load Working pressure (MPa) Water content in H2 (g/m3) Alkali content in H2 (mg/m3) Operation temperature () Cooling water consumption (m3/h) DC Power consumption (kW·h/m3H2) Electrolyzer Dimension
L×W×H (mm)
Electrolyzer Weight
(kg)
Alkali contentration Alkali Circulation (m3/h) KOH (Normal Operation) (kg/set)
KCDQ-5 5 2.5 99.8% 98.5% 50%~100% 1.5~3.2 4 1 85±5 1.3 4.5 940×850×780 1350 30% KOH 0.3~0.35 45
KCDQ-10 10 5 99.8% 98.5% 50%~100% 1.5~3.2 4 1 85±5 1.9 4.5 1355×850×780 1750 30% KOH 0.5~0.6 65
KCDQ-15 15 7.5 99.8% 98.5% 50%~100% 1.5~3.2 4 1 85±5 2.6 4.5 1730×850×780 2250 30% KOH 0.7~0.8 85
KCDQ-16 16 8 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 2.6 4.3 1515×1160×1400 3600 30% KOH 1.55~1.85 240
KCDQ-20 20 10 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 3 4.3 1680×1160×1400 3900 30% KOH 1.7~2.0 260
KCDQ-24 24 12 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 3.6 4.3 1900×1160×1400 4300 30% KOH 1.9~2.2 300
KCDQ-30 30 15 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 4.2 4.3 2180×1160×1400 4800 30% KOH 2.0~2.5 320
KCDQ-40 40 20 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 6.6 4.3 1660×1450×1580 6350 30% KOH 2.75~3.3 430
KCDQ-50 50 25 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 8 4.3 2000×1450×1580 7100 30% KOH 3.0~3.7 470
KCDQ-60 60 30 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 9 4.3 2170×1450×1580 7600 30% KOH 3.35~4.0 520
KCDQ-65 65 32.5 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 9.6 4.3 2280×1450×1580 8000 30% KOH 3.5~4.5 540
KCDQ-80 80 40 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 12 4.3 2620×1450×1580 8900 30% KOH 5.6~6.7 650
KCDQ-100 100 50 99.8% 98.5% 50%~100% 1.5~2.0 4 1 85±5 15 4.3 2500×1650×1860 14100 30% KOH 6.5~8.0 980
Case
Case Up to now, 718 has sold more than 1,000 sets of water electrolysis hydrogen production equipment, including electric power, petrochemical, pharmaceutical, metallurgy, polysilicon, meteorology, aerospace and other major gas companies. The sales scope covers 31 provinces, municipalities and autonomous regions nationwide, and is exported to more than 20 countries such as the United States, Germany and Norway. Please click on the specific case.
Service support
We are not only committed to providing first-class products and equipment, but also complete customer service.
After rapid development in recent years, we have established a comprehensive after-sales service team consisting of nearly 40 senior engineers, covering civil engineering, installation, commissioning, training and other services.
Our after-sales service team guarantees that each set of equipment can be quickly delivered to the customer with the best performance during on-site installation and commissioning. At the same time, after the equipment is officially put into production, we also provide professional online technical Q&A and fast on-site service in case of equipment failure.
PERIC has always been adhering to the principle of customer first, and has established long-term cooperation and service relationship with domestic and foreign customers. We also hold training courses and lectures for domestic and foreign customers together with China Industrial Gases Industry Association Hydrogen Professional Committee. The class has adopted various training methods including technical analysis, case explanation, exchange seminars etc. So far, 40 sessions have been held, and unanimously recognized and praised by users at home and abroad.
